產(chǎn)品展示半導(dǎo)體加熱器CSK 060 10W-20W
Operating with voltages below 140V AC/DC reduces heating performance by approx 10%
TECHNICAL DETAILS
Operating voltage | 120 - 240V AC/DC1 (min. 110V, max. 265V) |
Heating element | PTC resistor - temperature limiting |
Surface temperature | < +85°C (+185°F) (according to VDE 0100),except upper protective grille |
Connection | 2-pole terminal 2.5mm2, torque 0.8Nm max. |
Casing | plastic according to UL94 V-0, black |
Mounting | clip for 35mm DIN rail, EN 60715 |
Fitting position | vertical airflow (air outlet up, connection on bottom) |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidty | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Approvals |
VDE, UL File No. E150057, EAC |
Note | other voltages on request |
1 Operating with voltages below 140V AC/DC reduces heating performance by approx 10%.
Art. No. | Heating capacity | Inrush current (max.) | Recommended pre-fuse T (time-delay) | Weight (approx.) |
06040.0-00 | 10W | 1.0A | 2.0A | 0.2KG |
06030.0-00 | 20W | 2.5A | 4.0A | 0.3KG |
2 at +20°C (+68°F) ambient temperature

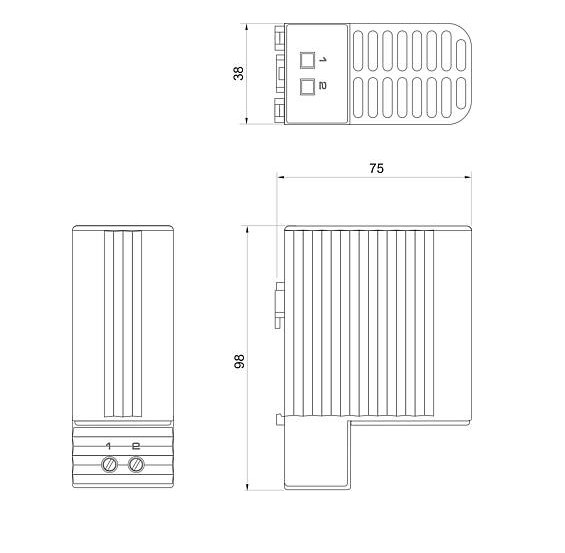

TECHNICAL DRAWING
