CREx 020 50W to 200W (T4)
TECHNICAL DETAILS
| Temperature class | T4 |
| Ex Protection type EX II 2 GD Gases Dusts | Ex db IIC T4 Gb Ex tb IIIC T135°C Db IP66 |
| Ambient temperature | l-60 to +50 °C (-76 to +122 °F) |
| Surface temperature | max. +135 °C (+275 °F) |
| Heating element | high performance cartridge |
| Connection | silicone cable (halogen-free) 3 x 0.75 mm2, length 1 m |
| Connection PE | 0.75 to 2.5 mm2 |
| Mounting | clip for 35 mm DIN rail, EN 60715 for heating body sizes 80 x 48 mm and 120 x 60 mm; screw fixing with 2 plug-on flanges for all heating body sizes, optional widthwise mounting |
| Fitting position | vertical airflow (connection on bottom) |
| Storage temperature | -60 to +85 °C (-76 to +185 °F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP66 / I (earthed) |
| Approvals | EPS 16 ATEX 1 109 X IECEx EPS 16.0048X EAC |
| Art. No. Magnet fixing | Screw flange fixing Art. No. Hole spacing X | Operating voltage | Heating capacity | Rec. pre-fuse T (time-delayed) | Dimensions (D x W x H) | Switch |
| 02041.0-00 | 150 mm | AC 230 V | 50 W | 0.5 A | 80 x 48 x 110 mm | 0.7 kg |
| 02041.9-00 | 150 mm | AC 120 V | 50 W | 1.0A | 80 x 48 x 110 mm | 0.7 kg |
| 02042.0-00 | 225 mm | AC 230 V | 100 W | 1.0A | 120 x 60 x 180 mm | 1.4 kg |
| 02042.9-00 | 225 mm | AC 120 V | 100 W | 2.0 A | 120 x 60 x 180 mm | 1.4 kg |
| - | 275 mm | AC 230 V | 150 W | 1.5 A | 160 x 80 x 220 mm | 2.3kg |
| - | 275 mm | AC 120 V | 150 W | 3.0 A | 160 x 80 x 220 mm | 2.3 kg |
| - | 350 mm | AC 230 V | 200 W | 2.0 A | 160 x 80 x 300 mm | 2.8 kg |
| - | 350 mm | AC 120 V | 200 W | 4.0 A | 160 x 80 x 300 mm | 2.8 kg |

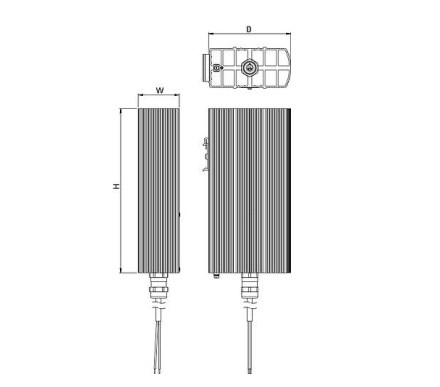

TECHNICAL DRAWING
