產(chǎn)品展示CREx 020 50W to 250W (T3)
TECHNICAL DETAILS
Temperature class | T3 |
Ex Protection type EX II 2 GD Gases Dusts | Ex db IIC T3 Gb Ex tb IIIC T200°C Db IP66 |
Ambient temperature | -60 to +50 °C (-76 to +122 °F) |
Surface temperature | max. +200 °C (+392 °F) |
Heating element | high performance cartridge |
Connection | silicone cable (halogen-free) 3 x 0.75 mm2, length 1 m |
Connection PE | 0.75 to 2.5 mm2 |
Mounting | clip for 35 mm DIN rail, EN 60715 for heating body sizes 80 x 48 mm and 120 x 60 mm; screw fixing with 2 plug-on flanges for all heating body sizes, optional widthwise mounting |
Fitting position | vertical airflow (connection on bottom) |
Storage temperature | -60 to +85 °C (-76 to +185 °F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP66 / I (earthed) |
Approvals | EPS 16 ATEX 1 109 X IECEx EPS 16.0048X EAC |
Art. No. Magnet fixing | Screw flange fixing Art. No. Hole spacing X | Operating voltage | Heating capacity | Rec. pre-fuse T (time-delayed) | Dimensions (D x W x H) | Switch |
02031.0-00 | 150 mm | AC 150 V | 50 W | 0.5 A | 80 x 48 x 110 mm | 0.7 kg |
02031.9-00 | 150 mm | AC 150 V | 50 W | 1.0A | 80 x 48 x 110 mm | 0.7 kg |
02032.0-00 | 225 mm | AC 225 V | 100 W | 1.0A | 80 x 48 x 180 mm | 1.0 kg |
02032.9-00 | 225 mm | AC 225 V | 100 W | 2.0 A | 80 x 48 x 180 mm | 1.0 kg |
020330-00 | 225 mm | AC 225 V | 150 W | 1.5 A | 120 x 60 x 180 mm | 1.4kg |
02033.9-00 | 225 mm | AC 225 V | 150 W | 3.0 A | 120 x 60 x 180 mm | 1.4kg |
02034.0-00 | 300 mm | AC 300 V | 200 W | 2.0 A | 120 x 60 x 240 mm | 1.7kg |
02034.9-00 | 300 mm | AC 300 V | 200 W | 2.0 A | 120 x 60 x 240 mm | 1.7kg |
- | 275 mm | AC 275 V | 250 W | 2.5 A | 160 x 80 x 220 mm | 2.3kg |
- | 275 mm | AC 275 V | 250 W | 5.0 A | 160 x 80 x 220 mm | 2.3kg |

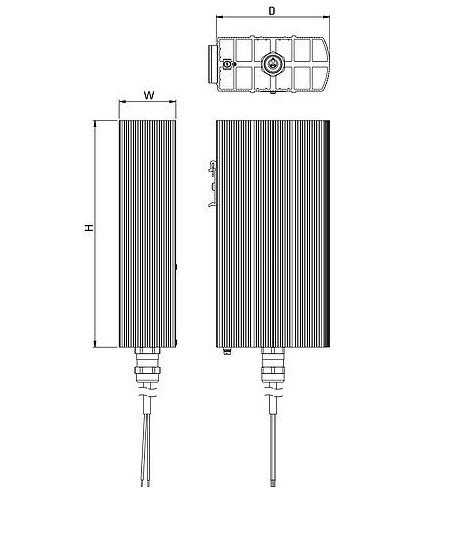

TECHNICAL DRAWING
