產(chǎn)品展示通氣減壓閥 DA 084
Make cut-out ? 37?1mm in enclosure wall and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For optimal
TECHNICAL DETAILS
DOWNLOAD PDF
Mounting | PG 29 thread with union nut | |
Torque | 5Nm | |
Material | plastic according to UL94 V-0, light grey weather proof and UV light resistant according to UL746C (f1) | |
Sealing | sealing gasket NBR | |
Air interface |
|
|
Dimensions | ? 60.5 x 30 mm | |
Fitting position | vertical1 | |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) | |
Approvals | VDE |
1 Protection type is restricted to IP54 if fitting position of DA 084 is not vertical.
Installation
Make cut-out ? 37?1mm in enclosure wall and mount pressure compensation device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure. For optimal pressure compensation we recommend to use two devices on opposite sides towards the top of the enclosure.
Art. No | Protection type | 1 packing unit | Weight (approx.) |
08400.0-03 | IP55 | 2 | 62g |

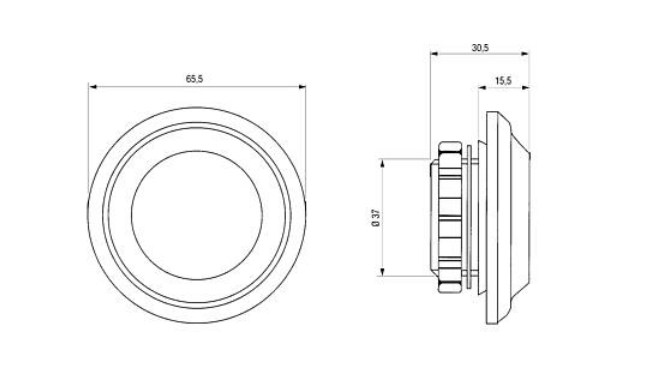

TECHNICAL DRAWING
