產品展示LED 025 開關式或感應式
These parts can be ordered separately. Sets, consisting of lamp and accessories, are available on request.
TECHNICAL DETAILS
Power consumption | max. 5W |
Luminosity | 400Lm at 120° (1,200Lm at 360° or equivalent 95W light bulb) |
Lamp type | LED, angle of radiation 120 |
light color: daylight, color temperature: 6,000K to 7,000K | |
Service life | 60,000h at +20°C (+68°F) |
Connection | 2-pole connector with snap lock |
AC: max. 2.5A / 240VAC, color: white | |
DC: max. 2.5A / 60VDC, color: blue | |
Mounting | magnet fixing or screw fixing (M5), clip fixing (M6) |
torque 2Nm max. | |
Casing | plastic, transparent |
Dimensions | see drawings |
Weight | 0.2kg |
Operating/Storage temperature | -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F) |
Operating/Storage humidty | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated), 12VDC: IP20 / III (extra-low voltage) |
Mounting options:The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure. A classic is the LED 025 with screw fixing.The clip holders exclusively designed for clip fixing of the LED 025 can be positioned anywherein the cabinet by simply screwing the holders to the cabinet wall. The lamp is snapped into the clip holders and can be turnedin both directions. With a total rotation angle of 180° it provides perfect illumination within the cabinet or enclosure.
Note:The lamp must not be used for household lighting.
Art. No. Magnet fixing | Art. No. Screw fixing | Art. No.Clip fixing | Operating voltage | Switch | Approvals | ||
02540.0-00 | 02540.0-01 | 02540.0-03 | 100-240VAC, 50/60Hz (min. 90VAC, max. 265VAC) | on/off light switch | VDE | UL File No. E234324 | EAC |
02540.1-00 | 02540.1-01 | 02540.1-03 | 24-48VDC (min. 20VDC, max. 60VDC) | on/off light switch | VDE | UL File No. E234324 | EAC |
02540.2-00 | 02540.2-01 | 02540.2-03 | 12VDC (min. 10VDC, max. 16VDC) | on/off light switch | VDE | UL File No. E234324 | EAC |
02541.0-00 | 02541.0-01 | 02541.0-03 | 100-240VAC, 50/60Hz (min. 90VAC, max. 265VAC) | PIR movement sensor2 | VDE | UL File No. E234324 | EAC |
02541.0-00 | 02541.1-01 | 02541.1-03 | 24-48VDC (min. 20VDC, max. 60VDC) | PIR movement sensor2 | VDE | UL File No. E234324 | EAC |
1 approx. 5 min. fixed switch-on duration
ACCESSORIES
Connectors and cables for electrical connection are not included in the delivery of the LED 025. These parts can be ordered separately. Sets, consisting of lamp and accessories, are available on request.
CONNECTION CABLE WITH FEMALE CONNECTOR AND OPEN END
Art. No. | Model | Length | Voltage type | Color | Use for | Approvals2 |
244356 | connection cable 2 x 1.5mm2 with female connector | 2.0m | AC | connector: white; cable: white | power input | VDE |
244357 | connection cable 2 x AWG 15 with female connector | 2.0m | AC | connector: white; cable: white | power input | VDE + UL |
244360 | connection cable 2 x 0.75mm2 with female connector | 2.0m | 24-48VDC | connector: blue; cable: white | power input | VDE |
244361 | connection cable 2 x AWG 15 with female connector | 2.0m | 24-48VDC | connector: blue; cable: white | power input | VDE + UL |
244389 | connection cable 2 x 0.75mm2 with female connector | 2.0m | 12VDC | connector: blue; cable: white | power input | VDE |
244390 | connection cable 2 x AWG 15 with female connector | 2.0m | 12VDC | connector: blue; cable: white | power input | VDE + UL |
2 applies only to the individual components (cable and connectors)
EXTENSION CABLE WITH 2 CONNECTORS FOR DAISY CHAIN CONNECTION
Art. No. | Model | Length | Voltage type | Color | Use for | Approvals2 |
244358 | extension cable 2 x 1.5mm2 with 2 connectors | 1.0m | AC | connectors: white; cable: white | daisy chain | VDE |
244359 | extension cable 2 x AWG 15 with 2 connectors | 1.0m | AC | connectors: white; cable: white | daisy chain | VDE + UL |
244362 | extension cable 2 x 1.5mm2 with 2 connectors | 1.0m | 24-48 VDC | connectors: white; cable: white | daisy chain | VDE |
244363 | extension cable 2 x AWG 15 with 2 connectors | 1.0m | 24-48 VDC | connectors: white; cable: white | daisy chain | VDE + UL |
244363 | extension cable 2 x 1.5mm2 with 2 connectors | 1.0m | 12VDC | connectors: white; cable: white | daisy chain | VDE |
244392 | extension cable 2 x AWG 15 with 2 connectors | 1.0m | 12VDC | connectors: white; cable: white | daisy chain | VDE + UL |
2 applies only to the individual components (cable and connectors)
FEMALE / MALE CONNECTORS
Art. No. | Model | Voltage type | Color | Use for | Approvals |
264057 | female connector | AC | white | power input | VDE + UL |
264058 | male connector | AC | white | power output | VDE + UL |
264059 | female connector | 24-48VDC | blue | power input | VDE + UL |
264060 | male connector | 24-48VDC | blue | power output | VDE + UL |
264065 | female connector | 12VDC | blue | power input | VDE + UL |
264066 | male connector | 12VDC | blue | power output | VDE + UL |

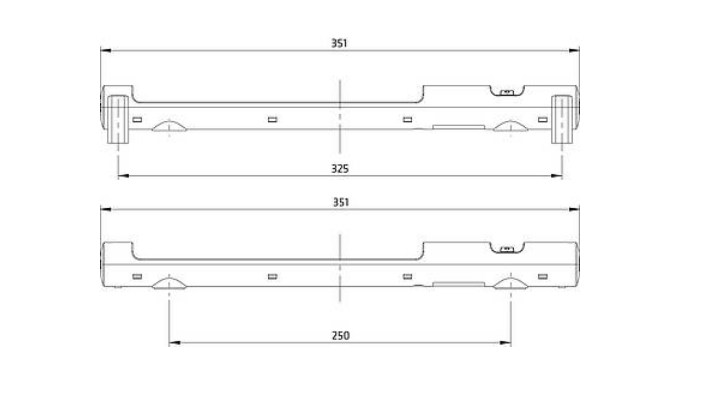

TECHNICAL DRAWING
