產(chǎn)品展示門碰 DS 013
TECHNICAL DATA
TECHNICAL DETAILS
Max. switching capacity | 250VAC, 8(1.5) A |
Service life | UL: > 6,000 cycles |
Connection | 4-pole clamp with strain relief, clamping torque 0.5Nm max. |
Mounting | screw fixing (M5) |
Casing | plastic according to UL94 V-0, grey/black |
Dimensions | 87 x 64 x 30mm |
Weight | approx. 50g |
Fitting position | variable |
Operating/Storage temperature | -20 to +85°C (-4 to +185°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type | IP20 |
Approvals | VDE, EAC; UL intended |
Art. No | Model | Suitable wire |
01350.0-00 | change-over (CO) | Cable round, stranded wire (with wire end ferrule) 0.75mm2 to 1mm2 |
01351.0-00 | normally closed (NC) | Cable round, stranded wire (with wire end ferrule) 0.75mm2 to 1.5mm2 |
01352.0-00 | normally open (NO) | Cable round, stranded wire (with wire end ferrule) 0.75mm2 to 1.5mm2 |

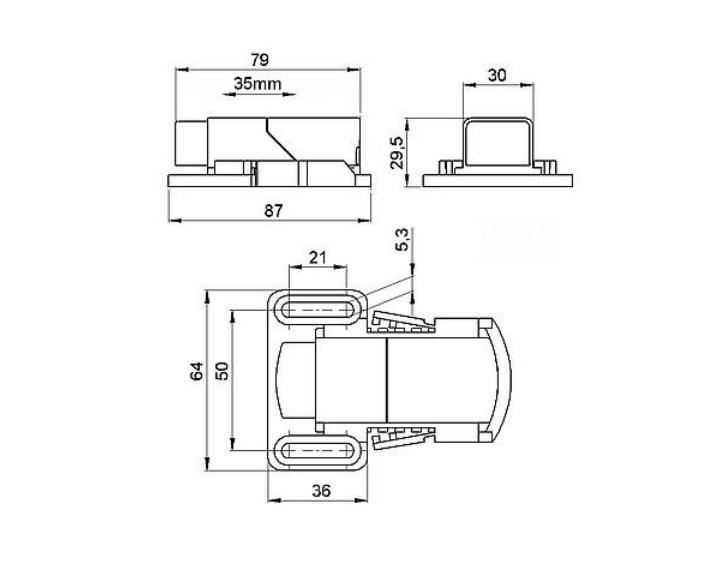

TECHNICAL DRAWING
