Make cut-out ? 50.5+0.5mm in enclosure bottom and mount drainage device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure and the hole is free
TECHNICAL DETAILS
Mounting | thread M50 x 1.5 with nut (wrench size 60mm,housing 50mm) | |
Torque | 6Nm max. | |
Depth in enclosure | max. 17.5mm | |
Material | plastic according to UL94 V-0, umbra grey,weather proof and UV light resistant according UL746C (f1) | |
Water entry height |
|
|
Sealing | sealing gasket NBR | |
Water flow-through | approx. 200 ml/h at a water column of 5mm | |
Dimensions | ? 60 x 49.5 mm | |
Fitting position | horizontal, lowest point | |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) | |
Approvals | VDE |
Installation
Make cut-out ? 50.5+0.5mm in enclosure bottom and mount drainage device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure and the hole is free of burrs.
Art. No | Protection type | Enclosure wall thickness | 1 package unit | Weight (approx.) |
08410.0-00 | IP66 / IP67 (EN 60529) / IP69K (EN 40050-9) | 0.5 - 5.5mm | 1 piece | 60g |

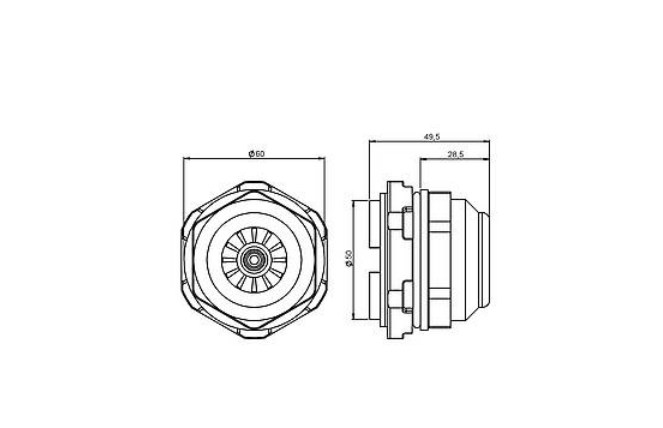

TECHNICAL DRAWING
