SL 025 (開關(guān)式)
TECHNICAL DETAILS
| Power consumption | 11kw |
| Luminosity | 900Lm (equals 75W light bulb) |
| Lamp type | energy saving lamp, 2G7 socket |
| Service life | 10000h |
| Switch | on/off light switch |
| Connection | terminal 2.5mm2 with cable clamp, torque 0.8Nm max. |
| Mounting | screw fixing, M5, 300mm centers |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 345 x 91 x 40mm |
| Fitting position | narrow surface/broad surface |
| Operating/Storage temperature | -20 to +50°C (-4 to +122°F) / -45 to +70°C (-49 to +158°F) |
| Operating/Storage humidty | max. 90% RH (non-condensing) |
| Protection type | IP20 |
| Note | The slimline lamp SL 025 is also available with a 19" front panel |
| Art. No. | Model | Operating voltage | Socket | Nominal current | Weight (approx.) | Protection class | Approvals | ||
| 02520.0-00 | without magnet | 230VAC, 50/60Hz | Germany/Russia (1) | 16.0A | 0.4kg | I (earthed) | VDE-GS | - | EAC |
| 02520.1-01 | with magnet | 230VAC, 50/60Hz | Germany/Russia (1) | 16.0A | 0.5kg | I (earthed) | VDE-GS | - | EAC |
| 02521.0-00 | without magnet | 230VAC, 50/60Hz | F/PL/CZ/SK (2) | 16.0A | 0.4kg | I (earthed) | VDE-GS | - | EAC |
| 02521.1-04 | with magnet | 230VAC, 50/60Hz | F/PL/CZ/SK (2) | 16.0A | 0.5kg | I (earthed) | VDE-GS | - | EAC |
| 02522.0-00 | without magnet | 230VAC, 50/60Hz | Switzerland (3) | 10.0A | 0.4kg | I (earthed) | VDE-GS | - | EAC |
| 02522.0-00 | with magnet | 230VAC, 50/60Hz | Switzerland (3) | 10.0A | 0.5kg | I (earthed) | VDE-GS | - | EAC |
| 02522.1-01 | without magnet | 230VAC, 50/60Hz | UK/Ireland (4) | 13.0A | 0.4kg | I (earthed) | VDE-GS | - | EAC |
| 02523.0-00 | with magnet | 230VAC, 50/60Hz | UK/Ireland (4) | 13.0A | 0.5kg | I (earthed) | VDE-GS | - | EAC |
| 02523.1-05 | without magnet | 120VAC, 50/60Hz | USA/Canada (5) | 15.0A | 0.4kg | I (earthed) | - | UL File No. E234324 | EAC |
| 02524.0-01 | with magnet | 120VAC, 50/60Hz | USA/Canada (5) | 15.0A | 0.5kg | I (earthed) | - | UL File No. E234324 | EAC |
| 02527.0-04 | without magnet | 230VAC, 50/60Hz | none | - | 0.4kg | II (double insulated) | VDE-GS | - | EAC |
| 02527.1-15 | with magnet1 | 230VAC, 50/60Hz | none | - | 0.5kg | II (double insulated) | VDE-GS | - | EAC |
| 02527.0-10 | without magnet | 120VAC, 50/60Hz | none | - | 0.4kg | II (double insulated) | - | UL File No. E234324 | EAC |
| 02527.1-11 | with magnet | 120VAC, 50/60Hz | none | - | 0.5kg | II (double insulated) | - | UL File No. E234324 | EAC |
| 02525.0-00 | without magnet | 24-48VDC | none | - | 0.4kg | II (double insulated) | VDE-GS | UL File No. E234324 | EAC |
| 02525.1-01 | with magnet | 24-48VDC | none | - | 0.5kg | II (double insulated) | VDE-GS | UL File No. E234324 | EAC |

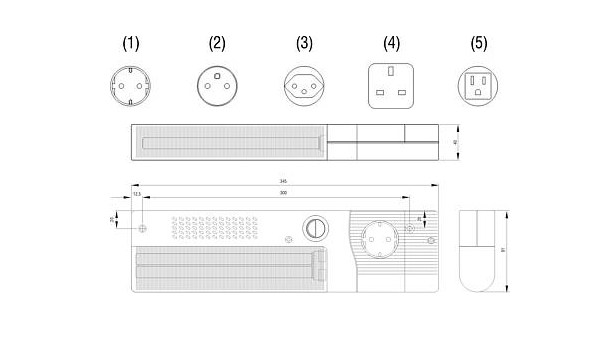

TECHNICAL DRAWINGS
